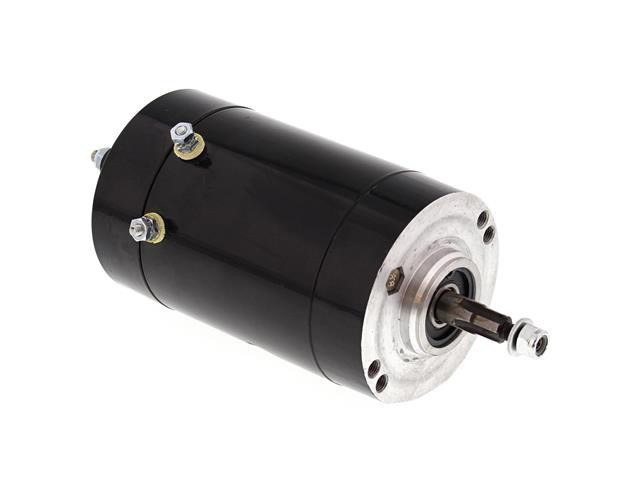

Features & Benefits:-
* Each Generator is Pre-Tested by the Manufacturer
* Can be used to replace any H-D Generator from 1936-84
* Matches OEM Specifications
* Double sealed Bearing for longer life
* Needle Bearing with High temp lubricant
* High Temp epoxy Armature
* Replaces OEM # 29975-65
* Replaces OEM # 29978-77A
Tech Tips:-
* Replacing a 1982-84 Sporster Hitatchi 65B Generator you must purchase OEM 31035-58 Oil Deflector & re-use your original generator gear.
* Replacing 1936-1957 6V 3 brush generator use OEM 31035-58 oil deflector, discard the original spring and old deflector. Cam cover & crankcase mount holes may need to be drilled to accept the 5/16 mount bolts.
* Check for clearance on foot clutch models.
* Polarizing:- With the motor off connect the “F” terminal to ground and momentarily flash the “A” terminal with positive. Remove ground from “F” terminal. If you have properly installed a working regulator it will turn on and ground the “F” terminal in which case you will not need to use an external ground.
* Caution! Do not flash the “F” terminal. This will damage the regulator.
* Caution! Failure to Polarise the Generator correctly may result in a burnt-out aramture
People who Buy this Product also Purchase:-
* Generator Mount Gasket, JGI-30143-58
* Oil Deflector EMP-A-31035-58
* Generator Drive Gear EMP-A-31070-58
MFR PART No: 80-2001
REVELRY PART No: ABR-80-2001
